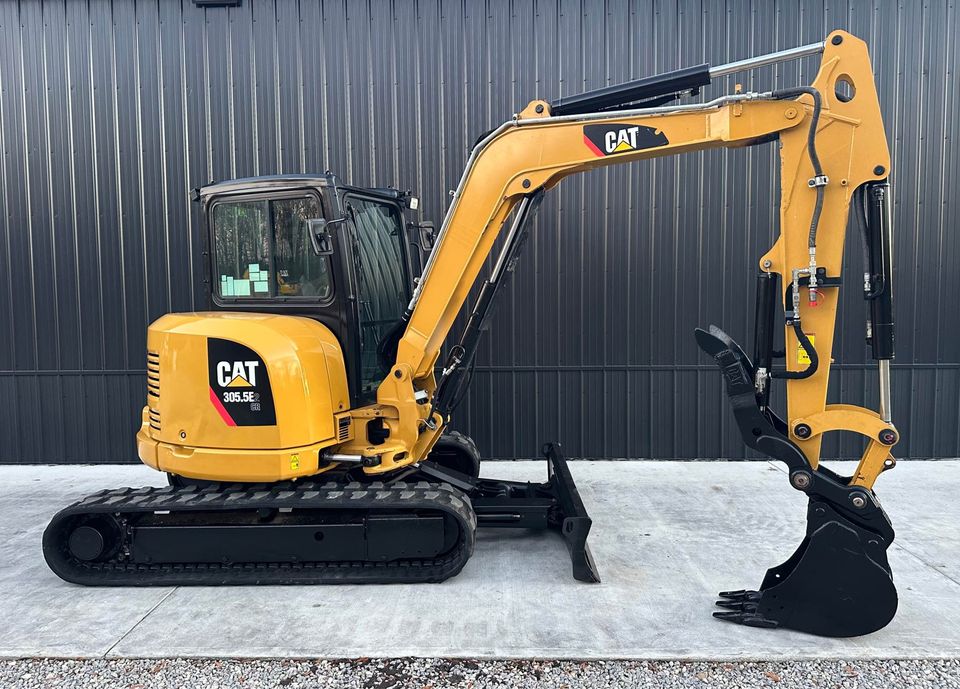

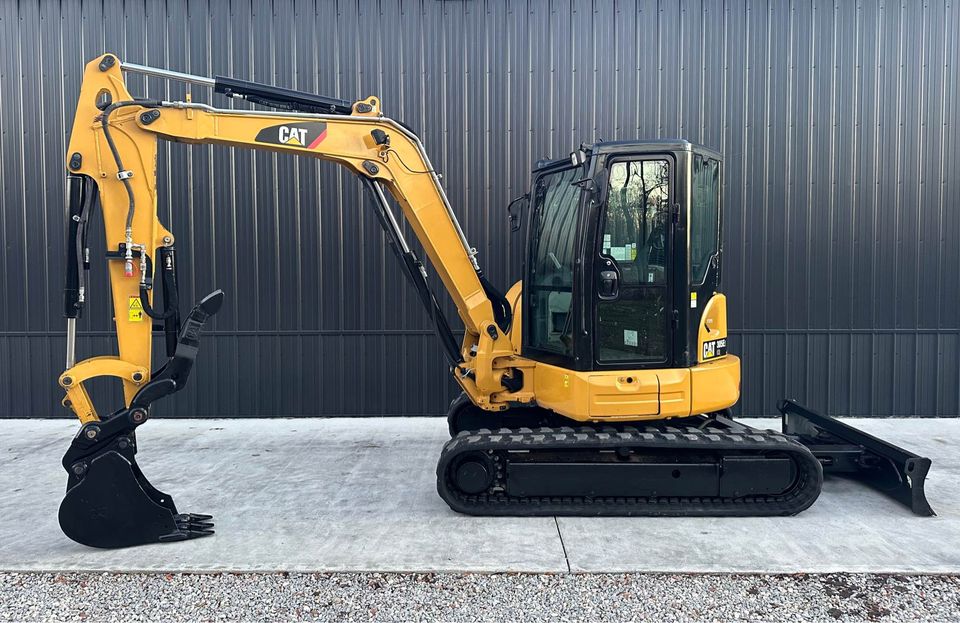

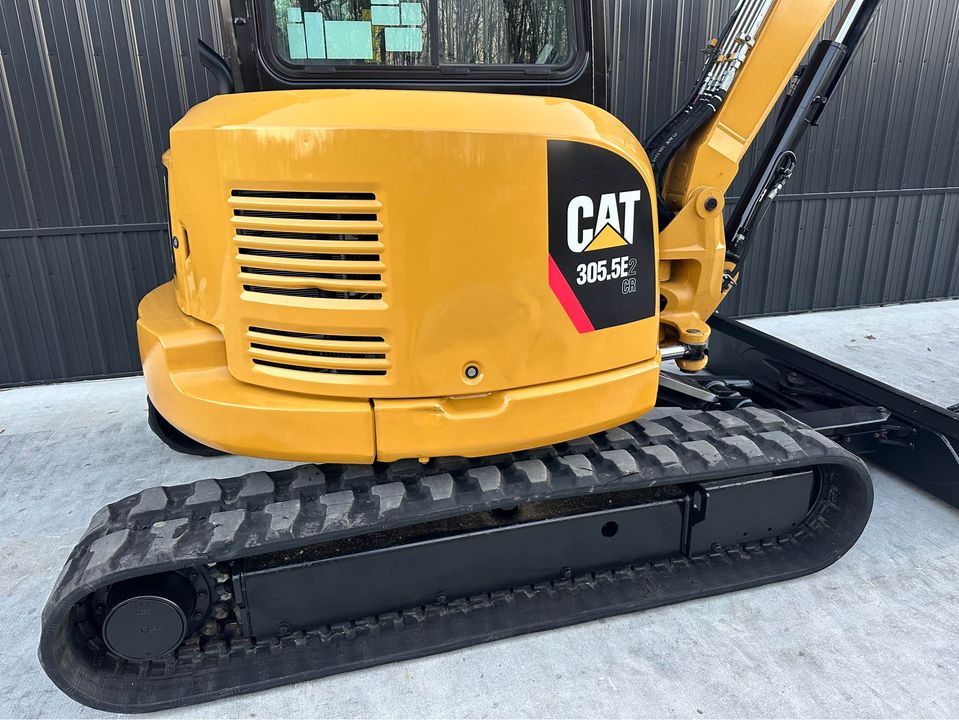

Caterpillar 305.5E2CR

No reviews yet

Anhui Zhaomi Engineering Machinery Co., Ltd.2 · CN

Specification parameter

Electrical System

Electrical System Type

Twelve-volt system

Swing System

Swing System Type

Hydraulic Motor Driven

Machine Swing Speed

9.6rpm

Boom Swing - Left - Without Stop

80degrees

Boom Swing - Left - With Stop

55degrees

Boom Swing - Right

50degrees

Engine

Gross Power

32.1kw

Net Power

31.4kw

Engine Model

3013

Operational

Operating Weight

4939.7kg

Weights

Operating Weight - With Cab

4989.6kg

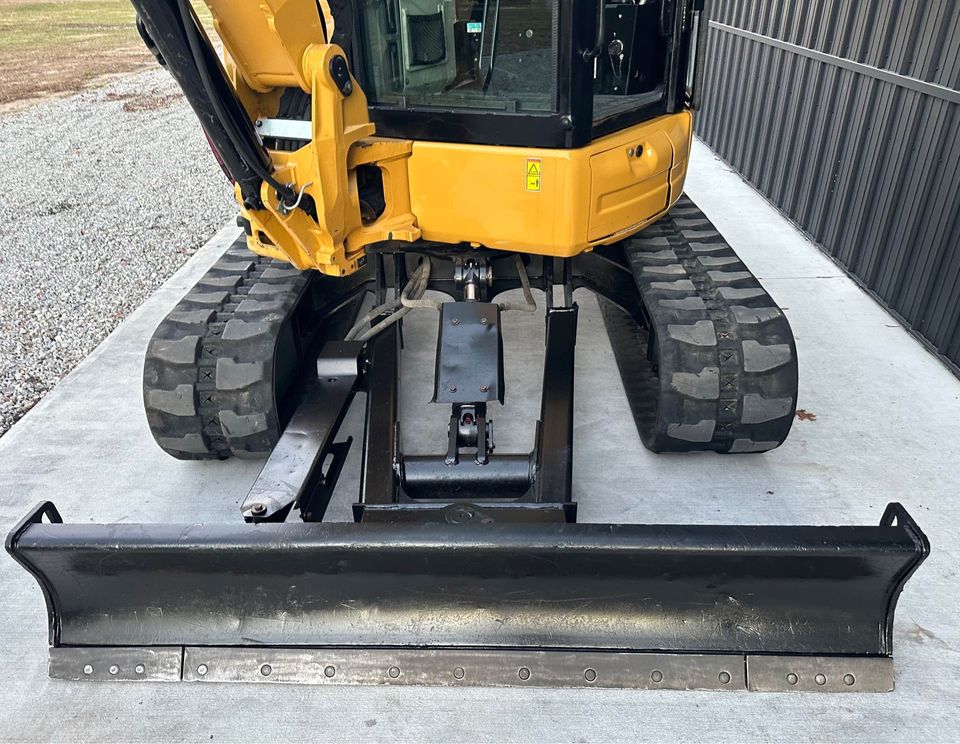

Blade

Width

1981.2mm

Lift Height

457.2mm

Dig Depth

355.6mm

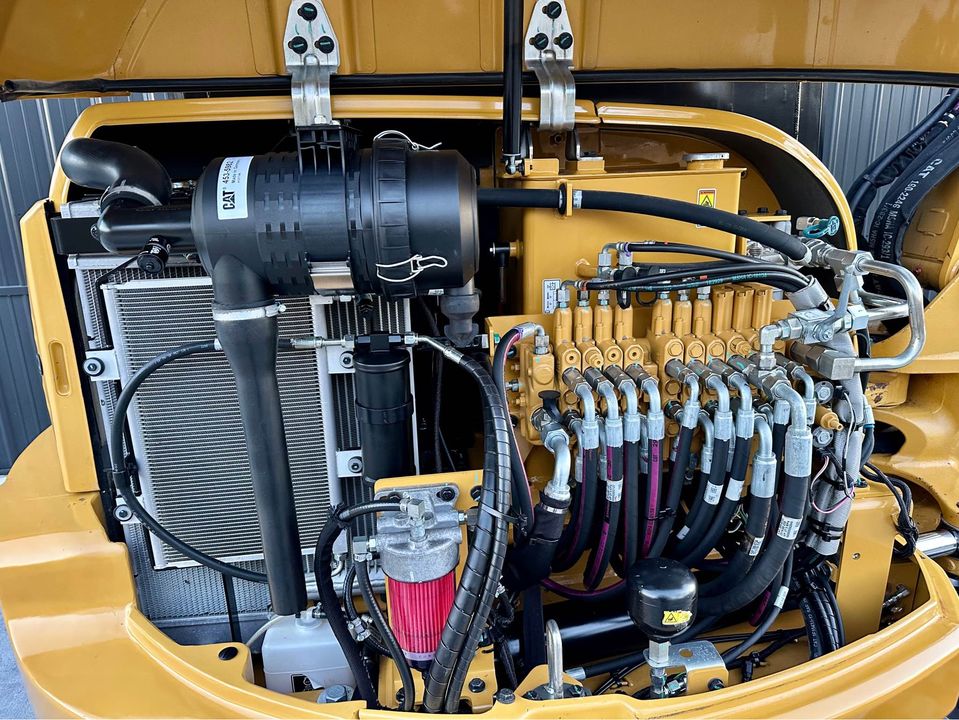

Hydraulic System

Operating Pressure - Swing

3550 psi

Pump - Gear (Single)

11.2 gal/min

Pump - Gear (Tandem)

13.8 gal/min

Operating Pressure - Equipment

3550 psi

Operating Pressure - Travel

3550 psi

Digging Force - Stick - Standard

2814.6kg

Digging Force - Stick - Long

2376.9kg

Digging Force - Bucket

4282kg

Auxiliary Circuit - Primary (245 Bar/3,553 Psi)

25 gal/min

Service Refill Capacities

Fuel Tank

68.2L

Hydraulic Tank

56.8L

Hydraulic System

84.8L

Engine Oil

8.4L

Cooling System Tag

7L

Engine Dimensions

Bore

90mm

Stroke

90mm

Displacement

2.3L

Msc Comments

Msc Spec Date

1/1/2000

Travel System

Gradeability - Maximum - High

25degrees

Travel Speed - High

4.9km/h

Travel Speed - Low

2.8km/h
